200AH 12V LiFePo4 Battteries Replacing AGM GEL Battery Lighter
Weight And Longer Working Time
Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and
five times longer float/calendar life than lead acid battery ,
helping to minimize replacement cost and reduce total cost of
ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid
battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even
high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the
risk of explosion or combustion due to high impact overcharging or
short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes bicycles
♦Sightseeing car,AGV,ATV
12V 200AH LiFePo4 battteries specification
| Battery Pack Parameter |
1 | Nominal Voltage | 12.8V | |
2 | Voltage Range | 10～14.6V | Cells voltage range: 2.5-3.65V |
3 | Nominal Capacity | 200Ah | 0.5C rate,25℃ |
4 | Nominal Energy Capacity | 2560Wh | |
5 | Max. Charge Current | 150A | |
6 | Max. Continuous Discharge Current | 150A | |
7 | Peak Discharge Current | 300A | Duration time: 5S |
8 | Cycle Life of Battery Pack | Over 2000 | at 80 % DOD, 25℃ |
9 | Total Weight | 27.5kg | |
10 | Humidity | 10%-90% | |
11 | Cooling Method | Natural Cooling | |
12 | Working Temperature | Charge: 0℃～45℃, Discharge: -20℃～60℃ |
13 | Smart Functions | With Bluetooth and mobile phone APP connection; Mobile phone APP
display: battery pack voltage, single cell voltage, working
current, SOC, cycle number, temperature and so on. |
Bluetooth BMS specification(For IOS and Andorid system)
| Item | Content | Criterion |
| Charge and Discharge Port | Shared |
| Communication | Bluetooth |
| Parallel Connection | Not allowed |
| Serial Connection | Max. 4pcs |
| Normal Current | Charge Current | ≤200A |
| Discharge Current | ≤200A |
| Over charge Protection | Charge Voltage | 14.6V |
| Over charge detection voltage | 3.80±0.05V |
| Over charge detection delay time | 1S |
| Over charge release voltage | 3.60±0.05V |
| Over discharge protection | Over discharge detection voltage | 2.00V±0.10V |
| Over discharge detection delay time | 1S |
| Over discharge release voltage | 2.30±0.10V |
| Over current protection | Over current detection current | 440±40A |
| Over current detection delay time | 1S |
| Over current release condition | Disconnected loading or charger |
| Short circuit protection | YES |
| Temperature protection | YES |
Huaxing other 12V LiFePo4 battery
| 12.8V LiFePO4 Battery Pack |
| Battery Type | 12V12Ah | 12V20Ah | 12V50Ah | 12V75Ah | 12V100Ah | 12V200Ah | 12V300AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 |
| Nominal Capacity (Ah) | 12 | 20 | 50 | 80 | 100 | 200 | 300 |
| Charge Voltage (V) | 14.6 |
| Charge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Discharge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS |
| Protection Functions | short circuit, over charge, over discharge, over current, over
temperature |

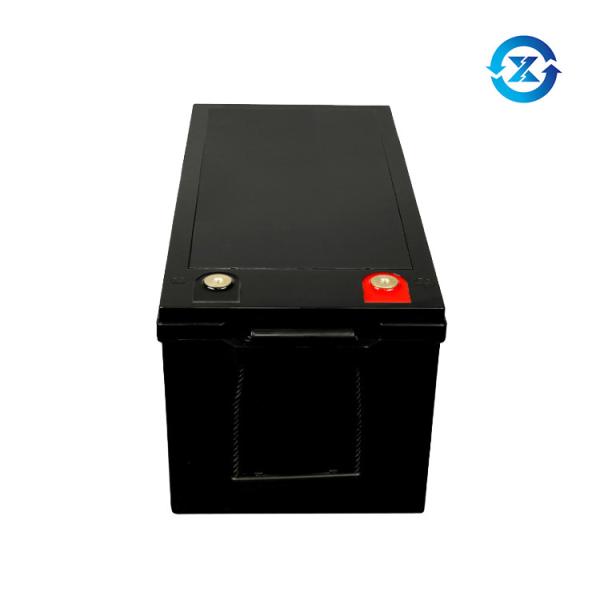

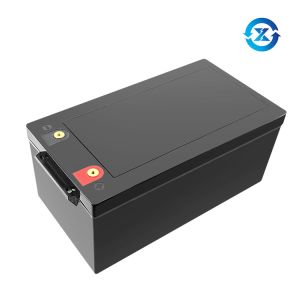

Product Picture
Package Information:
| DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m3) |
| (PCS) | CARTONS SIZE(MM) | (KG) | (KG) |
| 12V100AH LiFePo4 Battery | 1 | 460*250*220 | 14 | 13 | 0.03 |
| 12V200AH LiFePo4 Battery | 1 | 575*325*270 | 29 | 28 | 0.05 |
| 12V300AH LiFePo4 Battery | 1 | 575*325*270 | 40 | 39 | 0.05 |
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed
UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production
and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual
production of 3GWh cell equipment and at technical R&D team.
