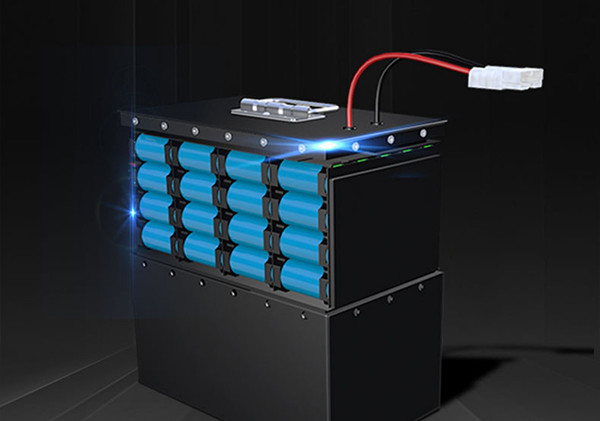

Long lasting 48V 24AH LiFePo4 battery for Electric vehicles to
replace lead acid battery
48V24AH LiFePo4 lithium battery pack specification
No. | Item | General Parameter |
1 | Model | HX4824 |
2 | Standard Capacity | 24AH |
| 3 | Rated Voltage | 51.2V |
4 | Max Charge Voltage | 58.4V |
5 | Discharge Cut Off Voltage | 40V |
6 | Standard Charge Current | 15A |
7 | Max Continuous Discharge Current | 30A |
8 | Peak Instant Discharge Current | 60A |
9 | Dimension(ABS) | Customized |
10 | Total weight(Approx.) | 13kg |
| 11 | Operate Temperature | -20°C~60°C |
12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
Six types for diifferent model e-scooter
Main Application
- Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled
low-speed vehicle, scooter, bus, golf
cart, forklift, RV and so on.
- Telecommunication, back-up power supply, UPS
- Storage energy for solar system, solar street, home energy storage
and so on.
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery
Huaxing New Energy
About us:
HUAXING NEW ENERGY is a group company.
The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its
subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which
produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4
battery pack.
We has over 50,000 m2 CELL and PACK workshop. With an annual
productivity of 3GWh
cell equipment and a technical R&D team, its annual sales
volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and
ISO45001:2018.
Our 32700 lifepo4 cell passes:
UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional
customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!
The comparison between LFP and SLA
| LFP battery | SLA battery | Remarks |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and
lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the
total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2
years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of
discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while
charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only
maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting
efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead | |
